AC Infinity, Cloudline T6, Quiet Inline Duct Fan System with Temperature and Humidity Controller, 6 Inch - 150 MM
AC Infinity, Cloudline T6, Quiet Inline Duct Fan System with Temperature and Humidity Controller, 6 Inch - 150 MM
AC Infinity, Cloudline T6, Quiet Inline Duct Fan System with Temperature and Humidity Controller, 6 Inch - 150 MM
AC Infinity, Cloudline T6, Quiet Inline Duct Fan System with Temperature and Humidity Controller, 6 Inch - 150 MM
AC Infinity, Cloudline T6, Quiet Inline Duct Fan System with Temperature and Humidity Controller, 6 Inch - 150 MM
AC Infinity, Cloudline T6, Quiet Inline Duct Fan System with Temperature and Humidity Controller, 6 Inch - 150 MM
AC Infinity

AC Infinity, Cloudline T6, Quiet Inline Duct Fan System with Temperature and Humidity Controller, 6 Inch - 150 MM

Regular price$455.00
/
Tax included. Shipping calculated at checkout.
availability
  • Low stock - 2 items left
  • Inventory on the way
This unit has been upgraded and will ship with Controller 67 and Australian Power plug  pictures to be updated soon.
  • Designed to ventilate hydroponic grow rooms, transfer heating/cooling, cool AV closets, and exhaust odors.
  • Intelligent controller with temperature and humidity programming, fan speed control, timer, and alarm system.
  • Mixed flow design combined with a PWM-controlled EC-motor for a truly quiet and energy efficient performance.
  • Kit also includes corded sensor probe, AC power plug, two duct clamps, and required mounting hardware.
  • Duct Size: 6” | Dimensions: 7.9 x 12.6 x 8.4 in. | Airflow: 402 CFM | Noise: 32 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION

A smart inline duct fan designed to quietly ventilate hydroponic grow rooms, boost heating/cooling to rooms, circulate fresh air, exhaust projects, and cool AV closets. Featuring an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. Contains an EC-motor with PWM-control for a quiet and energy efficient performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Includes an intelligent controller that features advanced programming and functions. Complete kit includes one duct fan unit, one thermal controller, one corded thermal probe, two duct clamps, installation manual, and all necessary mounting hardware.

INTELLIGENT CONTROLLER

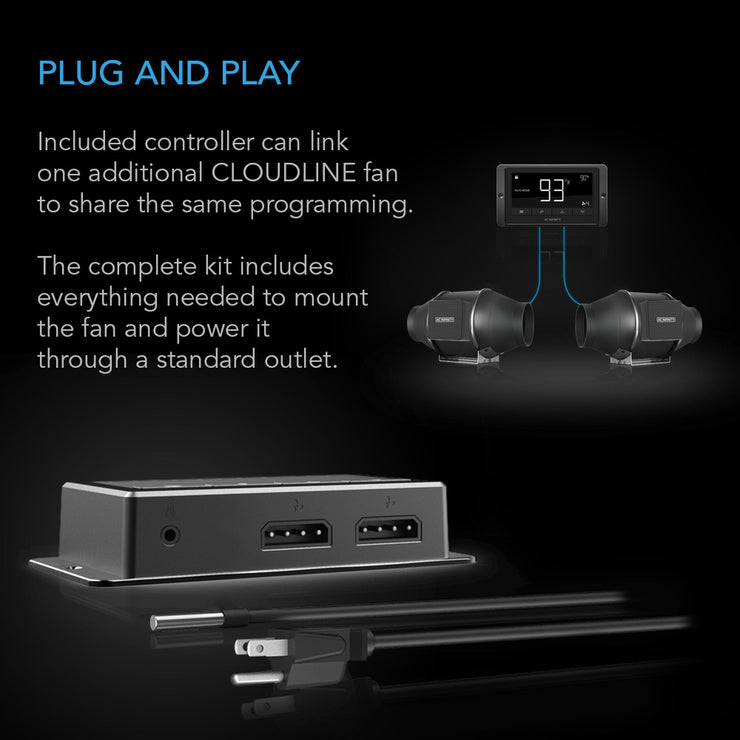

The controller can be programmed to adjust fan speeds to respond to varying high and low temperatures, and humidity. For ventilation applications, the controller can be set to run continuously, or triggered to run at customizable speeds when given power, due to its backup memory capability. Additional features includes a countdown timer, alarm system, and eco-mode. Includes detachable 12-foot precision probe that is water resistant. This EC smart controller can power and control 2 inline duct fans of any size, such as this CLOUDLINE T6 with a CLOUDLINE S4.

QUIET AND ENERGY EFFICIENT DESIGN

Unlike common duct fans that uses an AC-motor which are loud and unmanageable, this duct fan features an EC-motor that is controlled using PWM (Pulse Width Modulation). This technology enables motors to be able to run smoothly at extremely low RPM speeds without generating additional heat or noise. In addition, the duct fan uses a mixed flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is being restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.

APPLICATIONS

This quiet duct fan system is popular in a variety of applications including cooling AV equipment rooms, closets, racks, and cabinets. Due to its low noise and advanced control features, it’s also used in various air circulation and ventilation projects including hydroponic grow rooms and tents, exhausting bathrooms and attics, and other installations.

Technical Specifications

Note this Fan ships with an USA Plug - However an Australian Adapter is added with every fan.

   Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    CLOUDLINE T6
   Product Model    AI-CLT6
   UPC Code    854759004792
   Product and Mounting Dimensions - Fan Unit
   Duct Size    6"
   Total Dimensions    7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)
   Mounting Hole-To-Hole Distance    3.15 X 2.36 in. (8.0 x 6.0 cm)
   Screw Hole Size    Ø 0.236 in. (Ø 0.6 cm)
   Cord Length to Controller    240 in. (20 feet)  / 6 metre
   Product and Mounting Dimensions - Controller
   Total Dimensions    5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
   Hole to Hole Distance    4.71 x 2.64 in. (12.0 x 6.7 cm)
   Screw Hole Size    Ø 0.119 in (Ø 0.3 cm)
   Display Size    3.5 x 1.4 in. (9 x 3.5 cm)
   Cord Length to Plug    108 in. (9 feet)  / 2.7 metre
   Sensor Probe Length    144 in. (12 feet)
   Product Performance and Technical Specs
   Total Airflow    402 CFM
   Total Noise    32 dBA
   Static Pressure    503 Pa
   Voltage    100-240V AC
   Frequency    50/60Hz
   Max Power Draw    64 W
   Average Power Usage    38 W
   Current    1.67 A
   Power Connector Type    US Plug (NEMA 1-15 Type-A) / Australian Adapter incl.
   Operating Humidity    35 to 85% RH
   Operating Temperature    0 to 140°F
   Ingress Protection    IP 44
   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   L10 Life Expectancy    67,000 Hours
   Fan Quality Approvals    CE, RoHS
